The Evolution of percussion instruments is timeless...

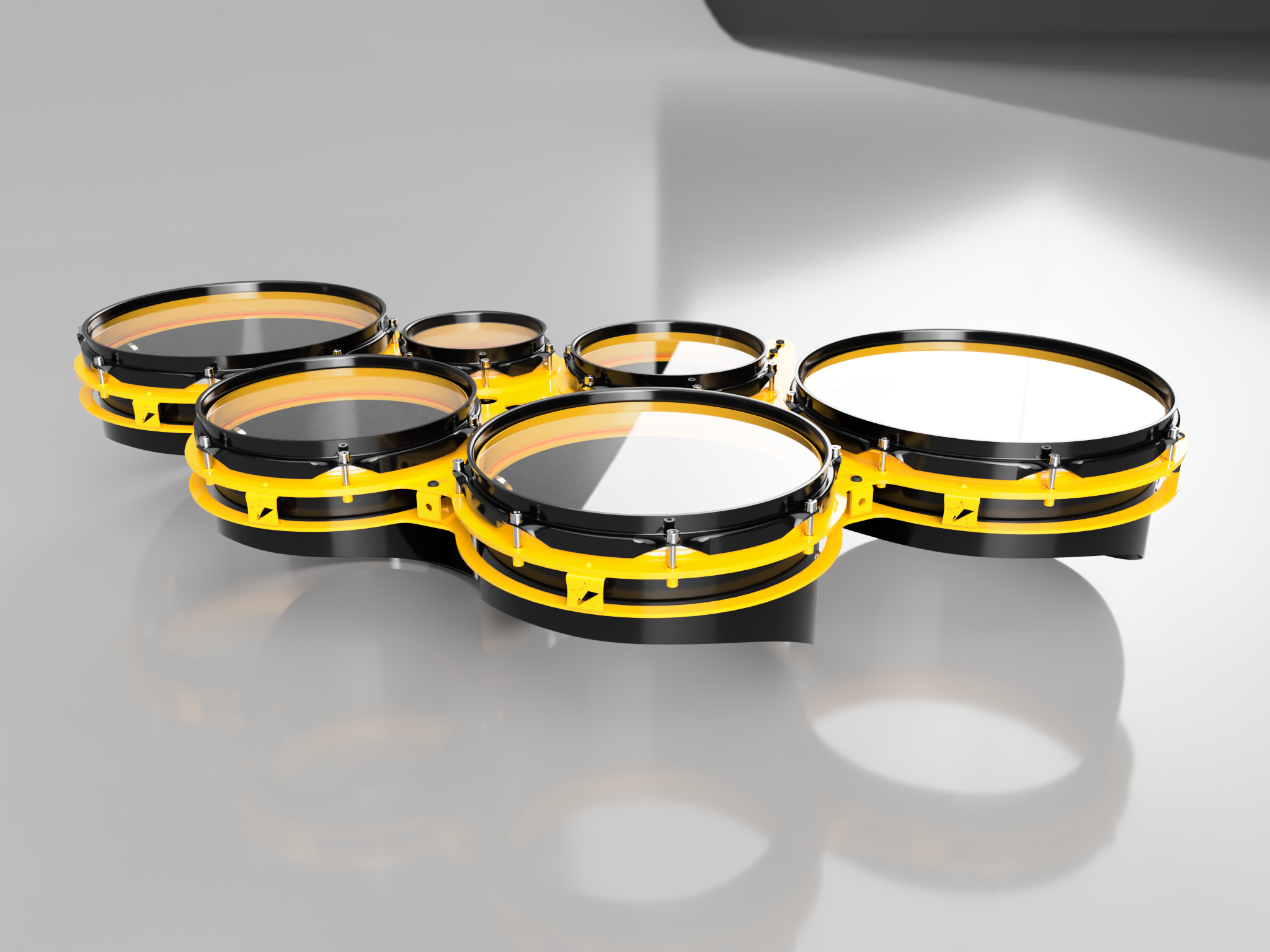

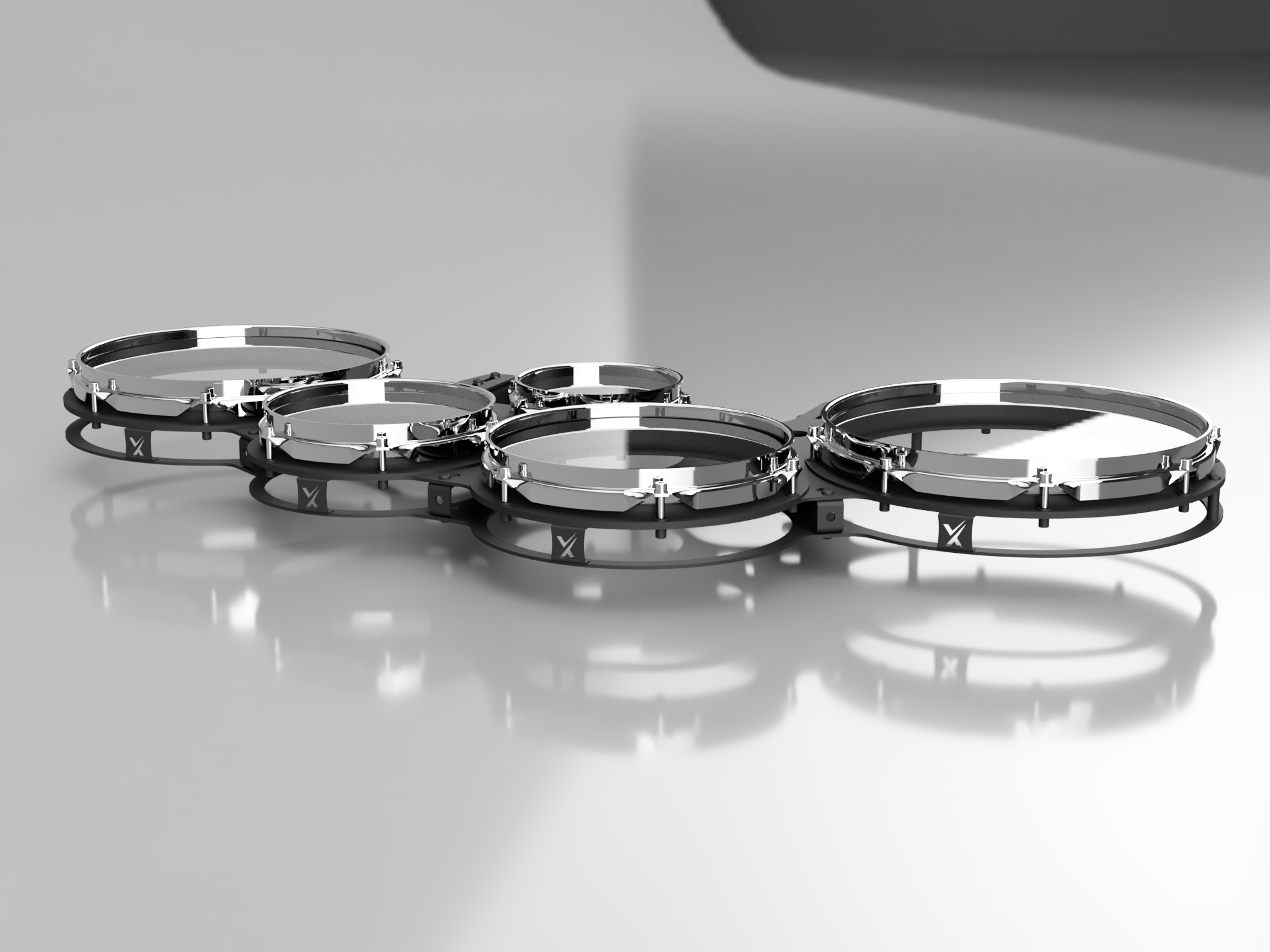

CBS Series Multi Tenor Set
The UFT series are build as a Free Floating concept. A unique construction where the drumhead is tensioned between the aluminium collar and the tension ring. Both components are precisely CC machined and stand for an extra ordinary strong construction.
The only tension limit is the strength of your drumhead. The drums are completed with an attachable special sized (2 feature) cut of shell for an optimum of protection The drums can be used with or without shell.
Download the productsheet for all models, technical specifications, weights, sizes and packaging.
Features
Tension rods
The drums are fitted with 12 stainless steel tension rods (M6X 1,5) for durability and strength to stand the high tension suitable for these drums, creating the sound/tension you need.
Tension rings
The tripple flanged and 2.3. mm tensionhoops will stand the tension you need.
Collar
Made out of special aluminium alloy. Focused on strength and durability. Precisely CC machined to create just the best construction for both bearing edge and extreme high tension. The collar just stand for quality and a life time durability. To adapt the drum to a carrier we choose the collar to attached the adaptor for a strong connection between carrier an drum.
Inserts
Pressed into the collar the steel inserts guarantee a lifetime functioning. Made for extreme tension ad precize tuning.Underneath the number of inserts to create an optimum of tuning suited on these drums.
- 6” 6 inserts
- 8” 6 inserts
- 10” 6 inserts
- 12” 8 inserts
- 13” 8 inserts
- 14” 8 inserts
Drumheads
We only use the best components and fore these series we choose for Remo Marching Pinstripe heads for the high tenor high tension you might need. Standard mounted on the instrument.
Shells
Plywood Impact | The heartbeat of your drum!
A 4mm 6-ply wooden shell made out of a combination of beech and occume. Both wood species which are the basics of light and strong drums shell.
Aluforce | Light in weight and strong in sound!
Precisely CC bended and welded aluminium shells made out of a special 1.5 mm aluminium sheet material. Extremely light in weight with an excellent performance in sound and durability. Aluforce it just says where it stands for.
Questions?
- Vancore Nederland BV
- Vancore Percussion Instruments is a trademark of Vancore Nederland BV
- Tolhûswei 7a | 8501 ZP Joure The Netherlands
- Showroom (op afspraak geopend)
- Tolhûswei 7a | 8501 ZP Joure The Netherlands
- Expedition
- Vegelinsweg 18 | 8501 BA Joure Netherlands
- T +31 (0) 513 415127
- E info@vancore.nl
CBS Series Multi Tenor Set
The perfect connection!
Under this slogan we deliver a set of adaptors for the perfect set-up of all marching instruments and carriers. Imagine, having one universal system for all your marching instruments and carriers.
These adaptors are produced using powder coated aluminum fitted with stainless steel fasteners. They are available with many different features for any instrumental use. For stability and performance, these products can’t be beat!!
MCA700 Use: All our Snaredrums and Tenorsets
MSA200 Use: Corps Custom and Lite Series Models
MSA300 Use: Ultimate Tension and Ultimate Pipeband Series Models
MSA301 Use: Ultimate Free Floating Vortex Drums
MSA400 Use: Corps Custom Series except CC Lite Drums
