The Evolution of percussion instruments is timeless...
Available in the following specifications:
| Plywood Impact: | |
| UTS1210TO | 12″ x 10″ | 10 lugs | TO Strainer |
| UTS1310TO | 13″ x 10″ | 10 lugs | TO Strainer |
| UTS1406TO | 14″ x 6,5″ | 10 lugs | TO Strainer |
| UTS1410TO | 14″ x 10″ | 10 lugs | TO Strainer |
| UTS1412TO | 14″ x 12″ | 10 lugs | TO Strainer |
| UTS1210TO/TS | 12″ x 10″ | 10 lugs | TO/TS Strainer |
| UTS1310TO/TS | 13″ x 10″ | 10 lugs | TO/TS Strainer |
| UTS1406TO/TS | 14″ x 6,5″ | 10 lugs | TO/TS Strainer |
| UTS1410TO/TS | 14″ x 10″ | 10 lugs | TO/TS Strainer |
| UTS1412TO/TS | 14″ x 12″ | 10 lugs | TO/TS Strainer |
| UTS1210UCS2 | 12″ x 10″ | 10 lugs | UCS2 Strainer |
| UTS1210UCS3 | 12″ x 10″ | 10 lugs | UCS3 Strainer |
| UTS1210UCS5 | 12″ x 10″ | 10 lugs | UCS5 Strainer |
| UTS1210UCN5 | 12″ x 10″ | 10 lugs | UCN5 Strainer |
| UTS1310UCS2 | 13″ x 10″ | 10 lugs | UCS2 Strainer |
| UTS1310UCS3 | 13″ x 10″ | 10 lugs | UCS3 Strainer |
| UTS1310UCS5 | 13″ x 10″ | 10 lugs | UCS5 Strainer |
| UTS1310UCN5 | 13″ x 10″ | 10 lugs | UCN5 Strainer |
| UTS1410UCS2 | 14″ x 10″ | 10 lugs | UCS2 Strainer |
| UTS1410UCS3 | 14″ x 10″ | 10 lugs | UCS3 Strainer |
| UTS1410UCS5 | 14″ x 10″ | 10 lugs | UCS5 Strainer |
| UTS1410UCN5 | 14″ x 10″ | 10 lugs | UCN5 Strainer |
| UTS1412UCS1 | 14″ x 12″ | 10 lugs | UCS1 Strainer |
| UTS1412UCS3 | 14″ x 12″ | 10 lugs | UCS3 Strainer |
| UTS1412UCS5 | 14″ x 12″ | 10 lugs | UCS5 Strainer |
| UTS1412UCN5 | 14″ x 12″ | 10 lugs | UCN5 Strainer |
| UTS1412XSTS | 14″ x 12″ | 10 lugs | XSTS Strainers |
| UTS1412UCS3TS | 14″ x 12″ | 10 lugs | UCS3TS Strainer |
| UTS1210UCN | 12″ x 10″ | 10 lugs | UCN Strainer |
| UTS1210UCN3 | 12″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1310UCN | 13″ x 10″ | 10 lugs | UCN Strainer |
| UTS1310UCN3 | 13″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1406UCN | 14″ x 6,5″ | 10 lugs | UCN Strainer |
| UTS1410UCN | 14″ x 10″ | 10 lugs | UCN Strainer |
| UTS1410UCN3 | 14″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1412UCN | 14″ x 12″ | 10 lugs | UCN Strainer |
| UTS1412UCN3 | 14″ x 12″ | 10 lugs | UCN3 Strainer |
| UTS1210UCN | 12″ x 10″ | 10 lugs | UCN Strainer |
| UTS1210UCN3 | 12″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1310UCN | 13″ x 10″ | 10 lugs | UCN Strainer |
| UTS1310UCN3 | 13″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1406UCN | 14″ x 6,5″ | 10 lugs | UCN Strainer |
| UTS1410UCN | 14″ x 10″ | 10 lugs | UCN Strainer |
| UTS1410UCN3 | 14″ x 10″ | 10 lugs | UCN3 Strainer |
| UTS1412UCN | 14″ x 12″ | 10 lugs | UCN Strainer |
| UTS1412UCN3 | 14″ x 12″ | 10 lugs | UCN3 Strainer |
| Aluforce Shell: | |
| AFS1210TO | 12″ x 10″ | 10 lugs | TO Strainer |
| AFS1310TO | 13″ x 10″ | 10 lugs | TO Strainer |
| AFS1406TO | 14″ x 6,5″ | 10 lugs | TO Strainer |
| AFS1410TO | 14″ x 10″ | 10 lugs | TO Strainer |
| AFS1412TO/TS | 14″ x 12″ | 10 lugs | TO Strainer |
| AFS1210TO/TS | 12″ x 10″ | 10 lugs | TO/TS Strainer |
| AFS1310TO/TS | 13″ x 10″ | 10 lugs | TO/TS Strainer |
| AFS1406TO/TS | 14″ x 6,5″ | 10 lugs | TO/TS Strainer |
| AFS1410TO/TS | 14″ x 10″ | 10 lugs | TO/TS Strainer |
| AFS1412TO/TS | 14″ x 12″ | 10 lugs | TO/TS Strainer |
| AFS1210UCS2 | 12″ x 10″ | 10 lugs | UCS2 Strainer |
| AFS1210UCS3 | 12″ x 10″ | 10 lugs | UCS3 Strainer |
| AFS1210UCS5 | 12″ x 10″ | 10 lugs | UCS5 Strainer |
| AFS1210UCN5 | 12″ x 10″ | 10 lugs | UCN5 Strainer |
| AFS1310UCS2 | 13″ x 10″ | 10 lugs | UCS2 Strainer |
| AFS1310UCS3 | 13″ x 10″ | 10 lugs | UCS3 Strainer |
| AFS1310UCS5 | 13″ x 10″ | 10 lugs | UCS5 Strainer |
| AFS1310UCN5 | 13″ x 10″ | 10 lugs | UCN5 Strainer |
| AFS1410UCS2 | 14″ x 10″ | 10 lugs | UCS2 Strainer |
| AFS1410UCS3 | 14″ x 10″ | 10 lugs | UCS3 Strainer |
| AFS1410UCS5 | 14″ x 10″ | 10 lugs | UCS5 Strainer |
| AFS1410UCN5 | 14″ x 10″ | 10 lugs | UCN5 Strainer |
| AFS1412UCS1 | 14″ x 12″ | 10 lugs | UCS1 Strainer |
| AFS1412UCS3 | 14″ x 12″ | 10 lugs | UCS3 Strainer |
| AFS1412UCS5 | 14″ x 12″ | 10 lugs | UCS5 Strainer |
| AFS1412UCN5 | 14″ x 12″ | 10 lugs | UCN5 Strainer |
| AFS1412XSTS | 14″ x 12″ | 10 lugs | XSTS Strainers |
| AFS1412UCS3TS | 14″ x 12″ | 10 lugs | UCS3TS Strainer |
| AFS1210UCN | 12″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1210UCN3 | 12″ x 10″ | 10 lugs | UCN3 STRAINER |
| AFS1310UCN | 13″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1310UCN3 | 13″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1406UCN | 14″ x 6,5″ | 10 lugs | UCN STRAINER |
| AFS1410UCN | 14″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1410UCN3 | 14″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1412UCN | 14″ x 12″ | 10 lugs | UCN STRAINER |
| AFS1412UCN3 | 14″ x 12″ | 10 lugs | UCN3 STRAINER |
| AFS1210UCN | 12″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1210UCN3 | 12″ x 10″ | 10 lugs | UCN3 STRAINER |
| AFS1310UCN | 13″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1310UCN3 | 13″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1406UCN | 14″ x 6,5″ | 10 lugs | UCN STRAINER |
| AFS1410UCN | 14″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1410UCN3 | 14″ x 10″ | 10 lugs | UCN STRAINER |
| AFS1412UCN | 14″ x 12″ | 10 lugs | UCN STRAINER |
| AFS1412UCN3 | 14″ x 12″ | 10 lugs | UCN3 STRAINER |

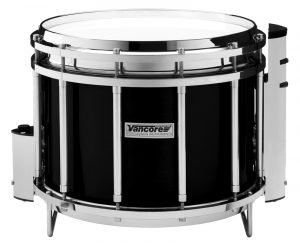

UTS Snaredrums
The UTS series are build as a free floating concept. A unique construction where the drumhead is tensioned between the aluminium collar and the tension ring. All components are precisely CC machined and stand for an extraordinary strong construction. The only tension limit is the strength of your drumhead. The drums are fitted with special tube lugs to tension the bottom head. The lugs are equipped with strong chrome plated inserts. The drums are completed with an Aluforce or Plywood Impact drum shell, to create an optimum of protection and a crispy sound.
To choose colors check our colourchart.
Be sure you check if the model is manufactured in Aluforce or Plywood Impact shells.
Download the productsheet for all models, technical specifications, weights, sizes and packaging.
Ultimate Tension Series in action!
Features
Snares
Top |
Top | Using wire snares (20 strands) the available snare systems stand for the most crispy and accurate sound available.
- Bottom | Depending on model of strainer:
- LTO – 8 individual adjustable cable snares
- UCS – 16 individual adjustable cable snares
Top Strainers
Top Strainer [TS] |For using the drum with our without snares we created the most sophisticated top strainer
Easy to handle and fully adjustable, both height and snare tensioning. CC machined components like Delrin and
special high quality anodized aluminium the strainer are the absolute top level available.
Bottom Strainer (2 options available)

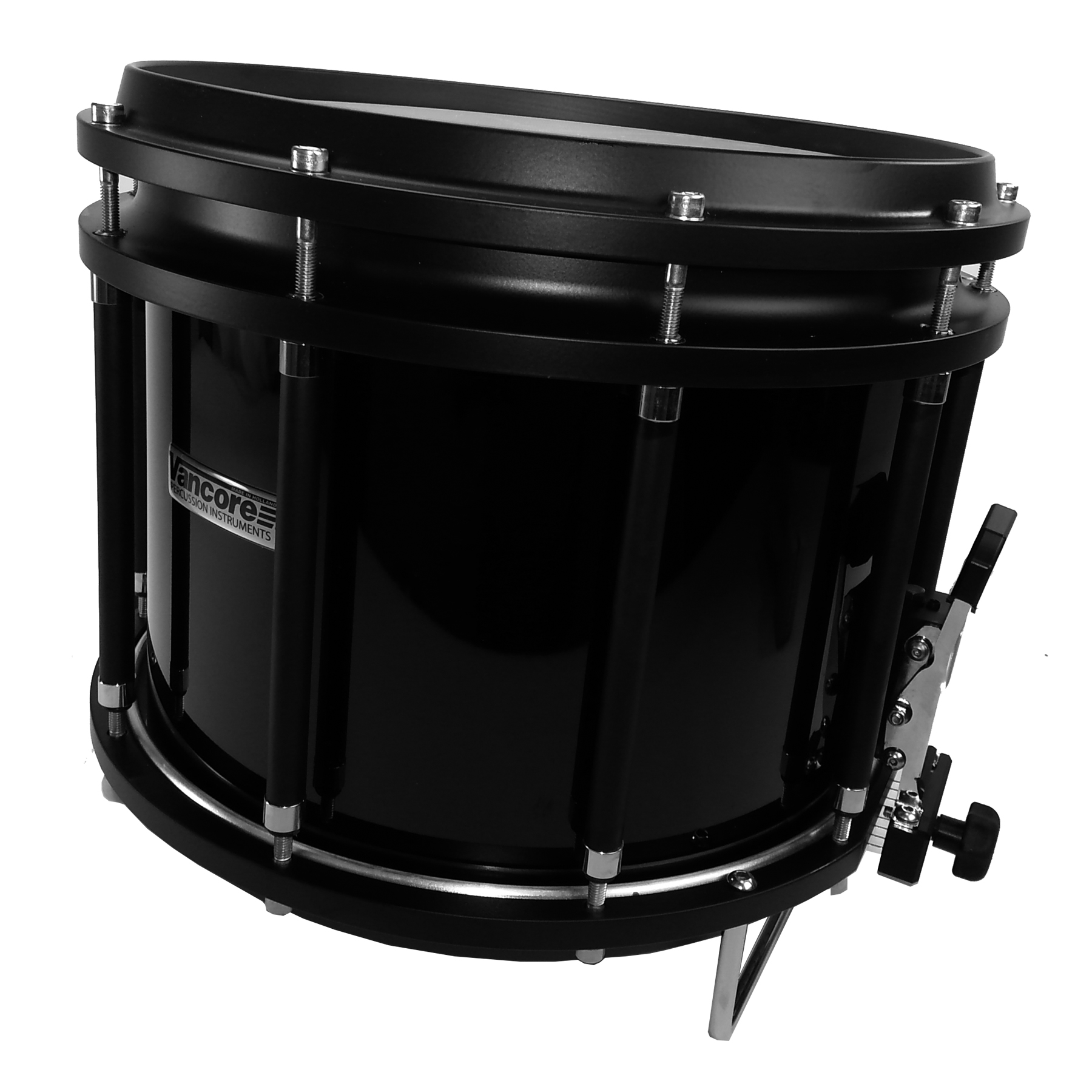

Light Throw Off strainer. [LTO] | Choosing the best available materials to create this fully adjustable strainer. Both height and tension are adjustable for an optimum of result in regards to projection and accurate snare sound. Easy to handle, designed and constructed, focused on the demands of the marching snaredrummers. Together with 8 individual adjustable cable snares the LTO Throw Off snare system fits to your quality choice!
UCS STRAINER | The biggest innovation in snaredrum technology! Made out of special designed extrusion profiles precisely CC machinetuned. This ultimate strainer gives the snare drummer the comfort of shifting the strainer during his playing activities. Besides a technical high standard it gives an ultimate in musical performance!!! Tension and height of the snares are fully adjustable. The one and only on the entire market.
Lugs
12 aluminum tubelugs are used to complete the freefloating concept. The tube lugs do have strong and preciselymanufactured chrome plated inserts to create the extreme and accurate tension you need for this most outstanding drum.

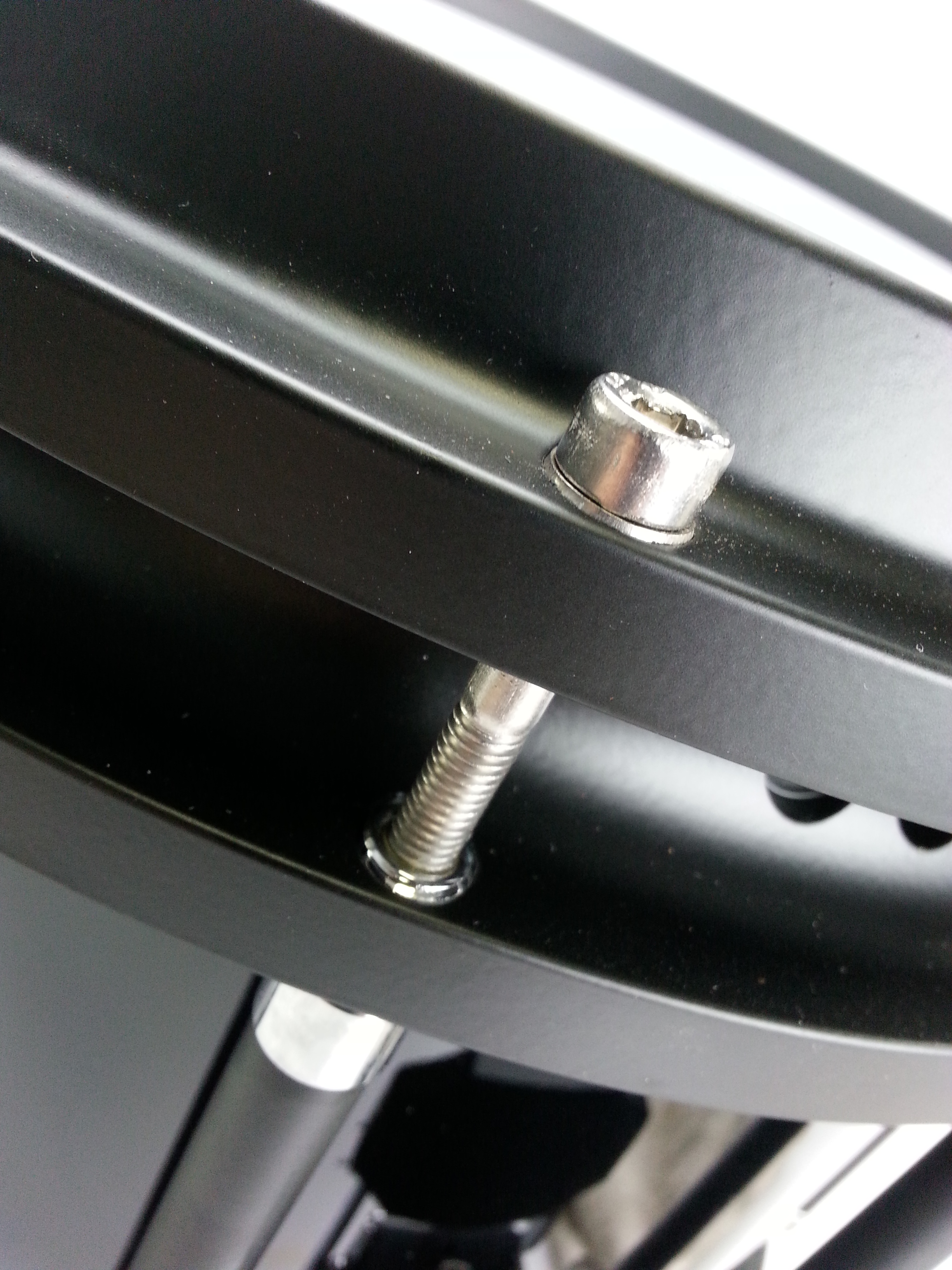

Tension Rods
The drums are fitted with 12 stainless steel tension rods (M6 X 1,5) for durability and strength to stand the hightension suitable for these drums, creating the sound / tension you need.

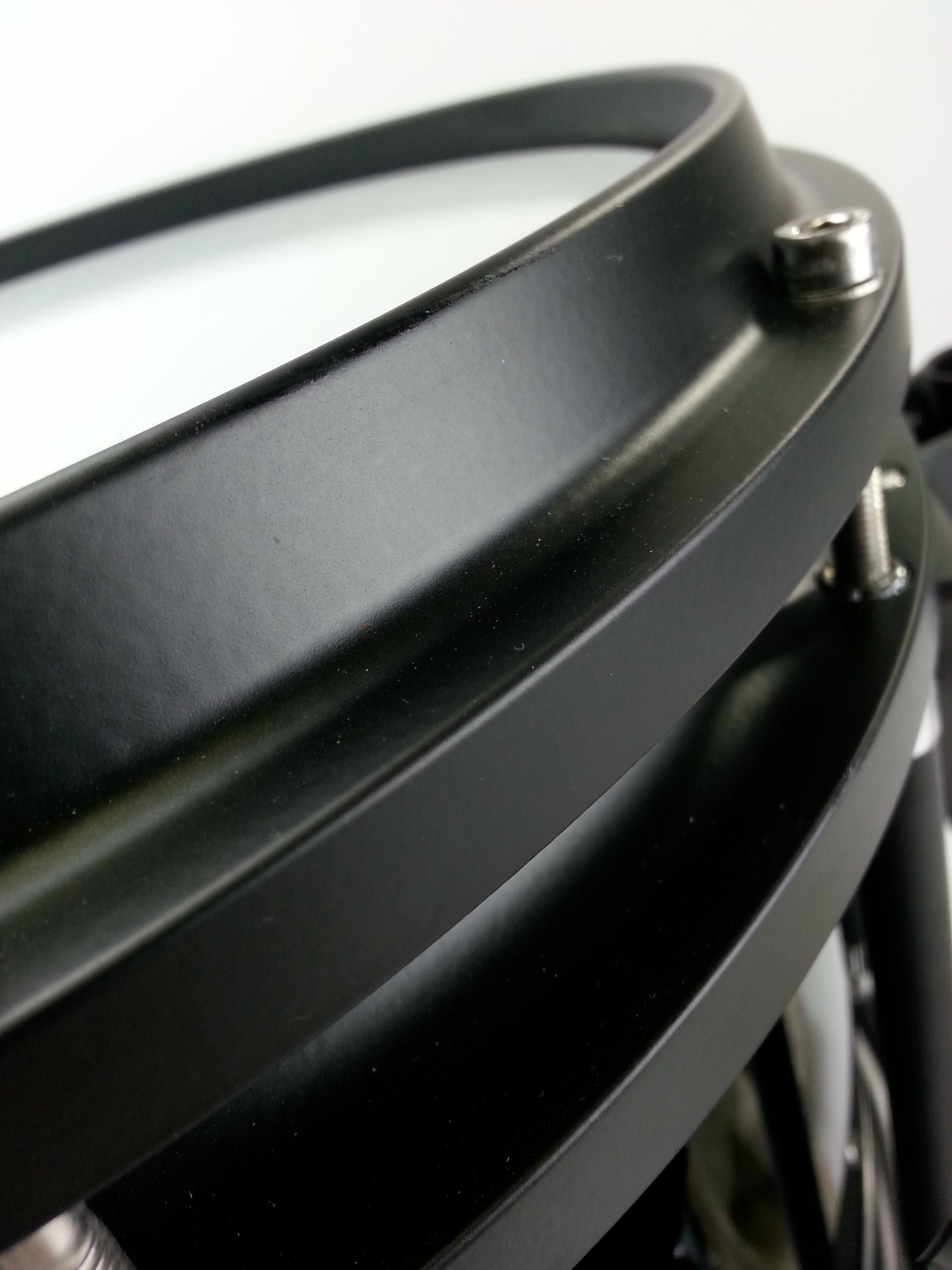

Tension Rings
Made out of special aluminium alloy. Focused on strength and durability. Precisely CC machined, mirror finished and available in different finishes. Just the best quality available on the entire market.

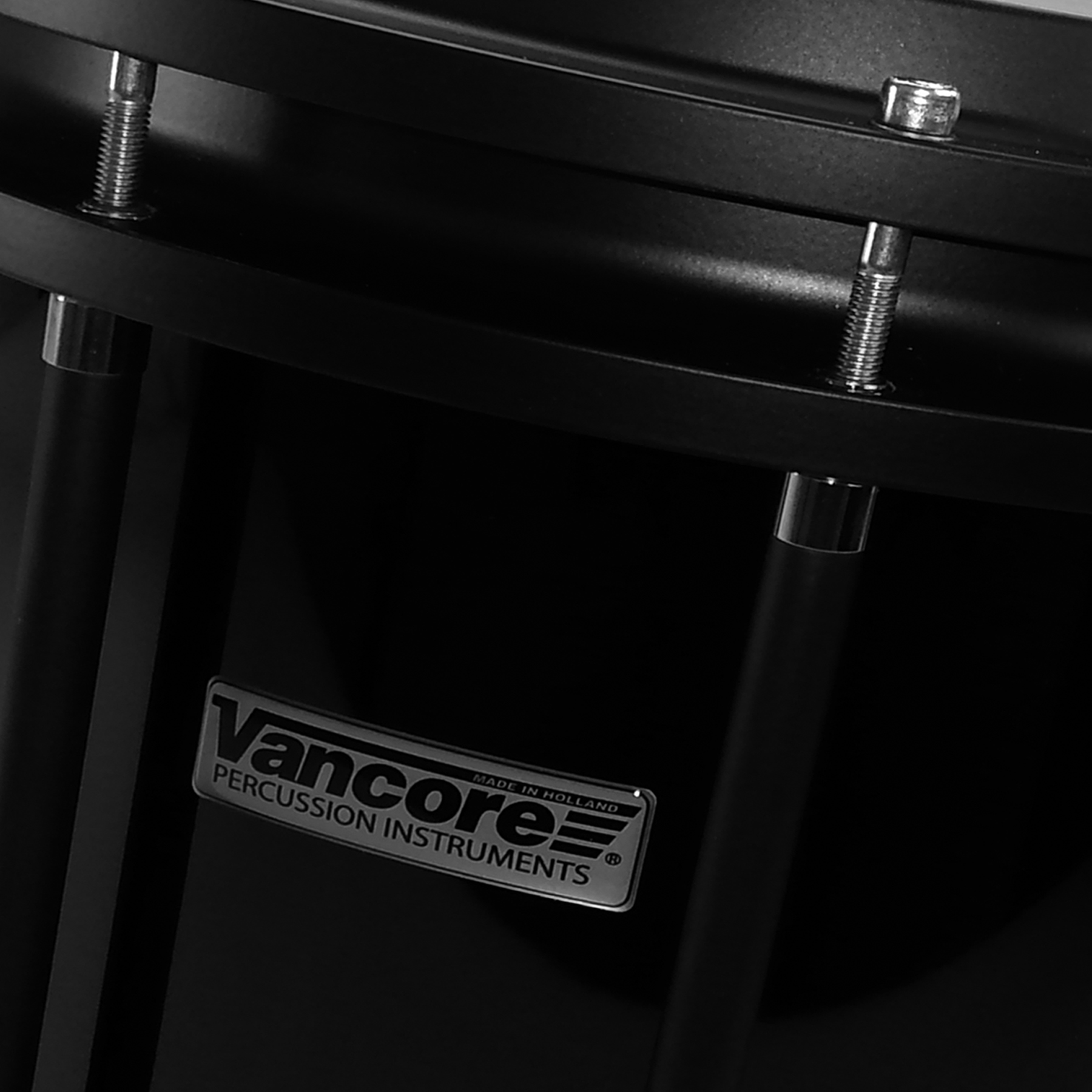

Collar
Made out of special aluminium alloy. Focused on strength and durability. Precisely CC machined to create just the best construction for both bearing edgeand extreme high tension. The collar just stand for quality and a life timedurability. To adapt the drum to a carrier we choose the collar to attached the adaptor for a strong connection
between carrier an drum.
Drumheads
We ony use the best component and there fore these series we choosed for Remo Falam Series as a standard, but optional you can choose for White/Black Max or Cybermax drumhead.We ony use the best component and there fore these series we choosed for Remo Falam Series as a standard, but optional you can choose for White/Black Max or Cybermax drumhead.
- Top | Remo Fallam Head
- Bottom | Depending on snarestrainer:
- TO: Remo Ambassador TD
- UCS: Remo Ambassador SA
Shells
Plywood Impact | The heartbeat of your drum! A 4mm 6-ply wooden shell made out of a combination of beech and occume. Both wood species which are the basics of light and strong drums shell.
Aluforce | Light in weight and strong in sound! Precisely CC bended and welded aluminium shells made out of a special 1.5 mm aluminium sheet material. Extremely light in weight with an excellent performance in sound and durability.
Questions?
- Vancore Nederland BV
- Vancore Percussion Instruments is a trademark of Vancore Nederland BV
- Tolhûswei 7a | 8501 ZP Joure The Netherlands
- Showroom (op afspraak geopend)
- Tolhûswei 7a | 8501 ZP Joure The Netherlands
- Expedition
- Vegelinsweg 18 | 8501 BA Joure Netherlands
- T +31 (0) 513 415127
- E info@vancore.nl
UTS Snaredrums
The perfect connection!

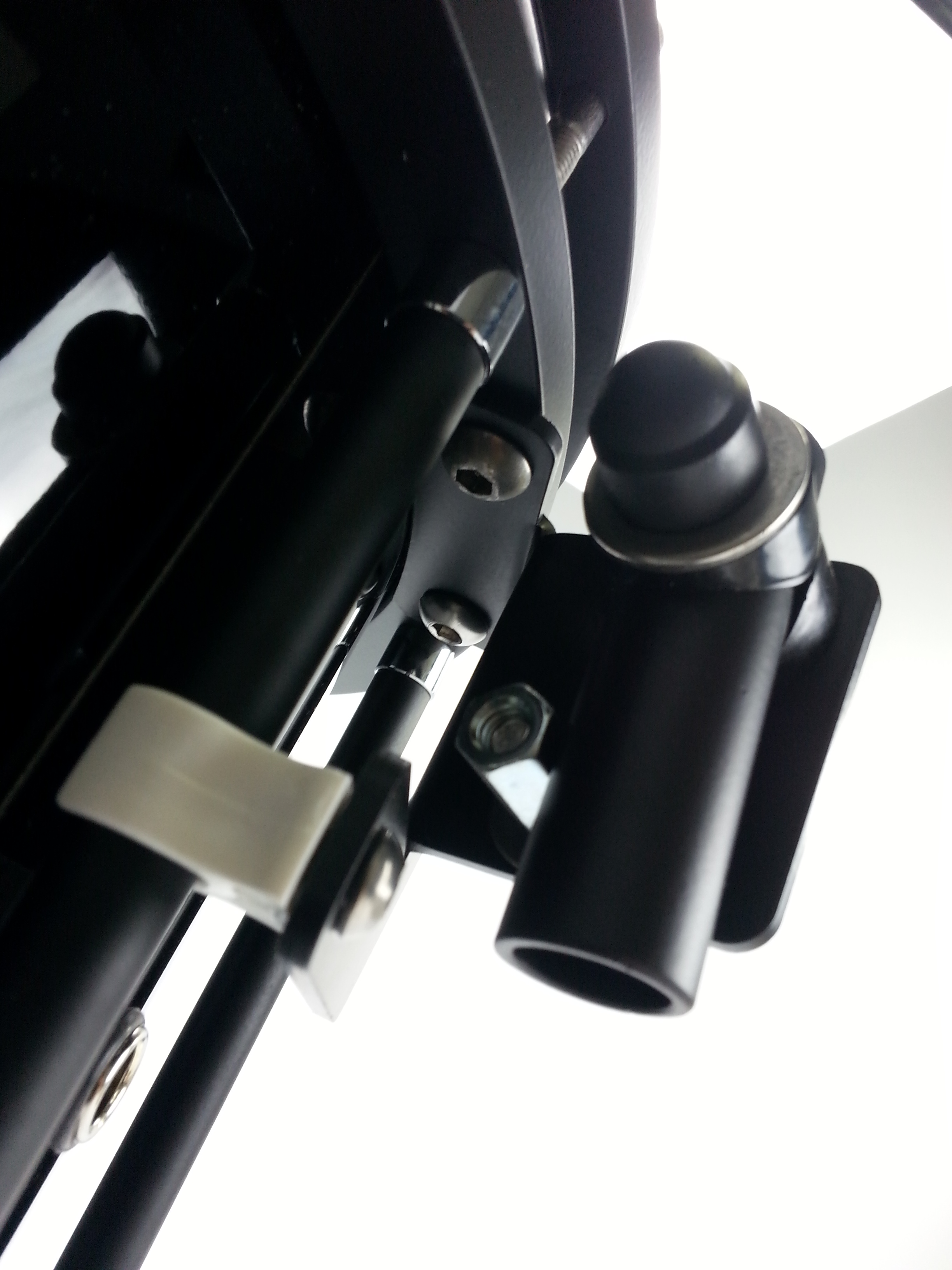

Under this slogan we deliver a set of adaptors for the perfect set-up of all marching instruments and carriers. Imagine, having one universal system for all your marching instruments and carriers.
These adaptors are produced using powder coated aluminum fitted with stainless steel fasteners. They are available with many different features for any instrumental use. For stability and performance, these products can’t be beat!!
MCA700 Use: All our Snaredrums and Tenorsets
MSA200 Use: Corps Custom and Lite Series Models
MSA300 Use: Ultimate Tension and Ultimate Pipeband Series Models
MSA301 Use: Ultimate Free Floating Vortex Drums
MSA400 Use: Corps Custom Series except CC Lite Drums
